Product Details Specifications Application Cutting Samples Inquiry

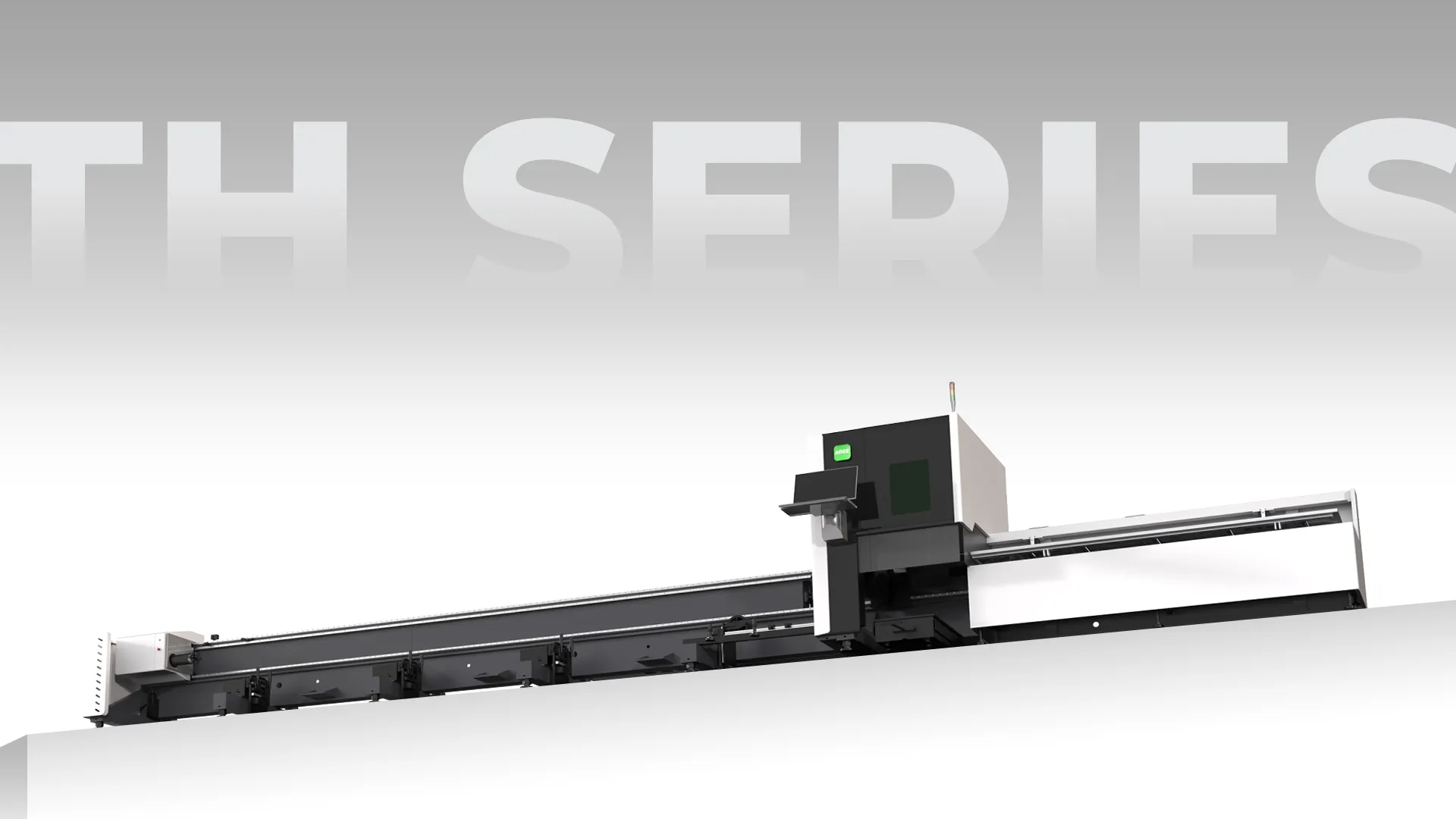

High-speed Cutting, Ultimate Processing

The chuck adopts a pneumatic direct push structure，Automatic centering, stable clamping, high transmission efficiency， Easy to disassemble and maintain, greatly improving processing efficiency

Industry-first front-moving chuck design

Movable front chuck design; Allows the cutting head to stay between the two chuck; Effectively cutting longer pipes; Cutting accuracy and stability are guaranteed

Ultra-short Tailings

While improving cutting efficiency; Make the most of the raw materials and reduce production costs

Intelligent Feeding System

Equipped with an automatic feeding system; High processing efficiency and high intelligence; Greatly improve production efficiency and save labor costs

Specifications

TH6012
TH6016
TH6020
TH6035
Laser power 1.5-3kW
Max. processing tube length 6300mm
Positioning accuracy 0.05mm
Repeated positioning accuracy 0.03mm
Max. Max. running speed 130m/min
Laser power 1.5-3kW
Max. processing tube length 6300mm
Positioning accuracy 0.05mm
Repeated positioning accuracy 0.03mm
Max. Max. running speed 130m/min
Laser power 1.5-3kW
Max. processing tube length 6300mm
Positioning accuracy 0.05mm
Repeated positioning accuracy 0.03mm
Max. Max. running speed 110m/min
Laser power 3-12kW
Max. processing tube length 6300mm
Positioning accuracy 0.05mm
Repeated positioning accuracy 0.03mm
Max. Max. running speed 80m/min

Application Industry

Applicable to fence partition, agricultural greenhouses, oil and gas pipelines, building ventilation pipes and other industries

Cutting Sample
